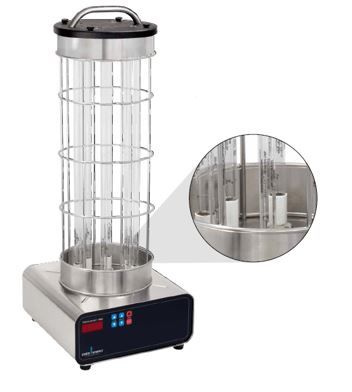

Germinator-UV Base Unit

White Papers & Research Articles on UV Decontamination:

• Applications of Ultraviolet Germicidal Irradiation Disinfection in Health Care Facilities
• Evaluation of an Automated Ultraviolet Radiation Device for Decontamination of Clostridium Difficile
• Selecting and Using No-Touch Room Disinfection
• Disinfection of Acinetobacter baumannii-Contaminated Surfaces
• Elimination of Clostridium Difficile by Illumination
• Decontamination with UV Radiation to Prevent Clostridium Difficile
• Room Decontamination with UV Radiation
• Room Decontamination Units Needed to Prevent Transmission of Environmental Pathogens

Features:

(nm). This wavelength is highly effective against microbes including: virus, bacteria, and mold spores.

• Germicidal Ultraviolet Lamps: Deliver ultraviolet energy at the specific wavelength of 254 nanometers
  • Timer: A microprocessor controller provides easily programmable treatment times in minutes and hours (up to 24 hours), to suit a variety of room sizes.
  • Audible Exit Warning: Provides an audible warning for 1 minute and 30 seconds after the start button is pushed, allowing the operator time to leave the area before the disinfection cycle begins.
  • Elapsed Time Indicator: A non-resettable display of the operating hours. Useful for scheduling and recording maintenance and lamp replacement.
  • Power Cord: For 120v AC 50/60Hz single-phase standard household current, a NEMA 5-15, three-prong plug is provided for a properly grounded outlet. 230v AC 50/60Hz models use a CEE 7/7 (Schuko type) plug. (Consult factory for alternate plug types.)
  • Storage Cover: Protects the germicidal lamps from breakage while transporting and/or storing the sanitizer and provides a way to safely test the ultraviolet lamp operation.
  • Sight Ports: Located on the top cover, allow observation of the germicidal lamps without the risk of ultraviolet exposure when the storage cover is on.
  • Stainless Steel Lamp Guard Assembly: Protects lamps from damage during normal operation.
  • Stainless Steel Construction: All electronics and wiring are housed in an enclosure constructed of stainless steel. Stainless steel construction provides strength, durability and will withstand most harsh environments.
  • Germinator Base Unit will operate between 120v  50/60Hz and 220-240v 50/60Hz

Please see above tab for available model options

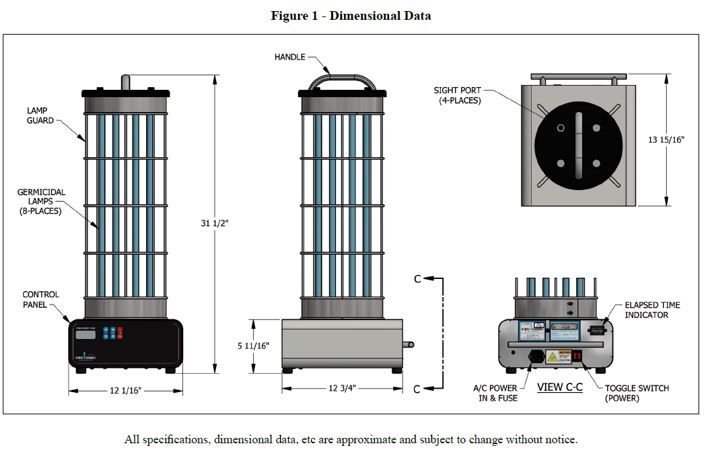

Specifications:

• Maximum treatment time: 24 hours
• Weight: 36 lb.
• Length: 13- 15/16in
• Width: 12-1/16in
• Height: 31-9/16in
• Lamp model: 559-2
• Number of lamps: 8 (55W each)
• UV Output: 143W
• 120V
• Average effective lamp life: 13,000 hours

If you wish to see additional information, please click here to see the PDF for this product.

Manufacturer warranty: 1year
