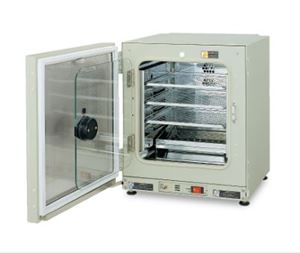

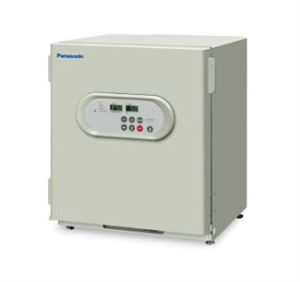

CO2 Biomedical Incubator 1.73 cu

This compact incubator offer precise control in a compact, space saving design allowing up to three models to be stacked, making them ideal for in vitro laboratory environment.



SKU: MCO-5ACL Categories: ,

Features:

  • Compact and Stackable
  • Active Background Control
  • Direct Heat and Air Jacket System
  • Integrated Microprocessor Control
  • SafeCell UV Protection (Optional)

Specifications:

  • EXTERIOR DIMENSIONS: 18.9in x 21.6in x 22.4in
  • INTERIOR DIMENSIONS: 13.8in x 14.9in x 14.8in
  • INTERIOR VOLUME: 49 L (1.73 cu.ft.)
  • OUTER DOOR: Painted Steel
  • SHELVES: 12.2in x 12.2in
  • ACCESS PORT: Inner Diameter: 1.18 inch, on the back side
  • INSULATION:Rigid-polyurethane foamed-in place
  • UV LAMP:Optional
  • NET WEIGHT: 49 kg (108 lbs)
  • TEMPERATURE CONTROL RANGE: Ambient temperature +º5C to 50C
  • TEMPERATURE UNIFORMITY: ±0.25C
  • MAXIMUM POWER CONSUMPTION: Max 205 W
  • CO2 CONTROL RANGE: 0% to 20%
  • CO2 CONTROLLER PID: Control System
  • CO2 GAS CONNECTION: 0.157 inch to 0.36 inch diameter tube can be connected
  • CO2 GAS PRESSURE: 0.03 MPa(G) (0.3kgf/cm2(G),4.3 psi(G))
  • CO2 VARIATION: ±0.15%
  • CO2 SENSOR TYPE: TC Sensor
  • DECONTAMINATION METHODS: 24 hr full chamber UV decontamination (SafeCell Ultraviolet Light)
  • CONTAMINATION CONTROLS:Standard 24 hr full chamber UV decontamination (SafeCell Ultraviolet Light) and Copper Alloy Interior Surface (inCu-saFe)
  • DISPLAY: Digital Touchpad
  • HEATING SYSTEM: Direct heat and air jacket
  • HUMIDIFYING SYSTEM: Natural evaporation with humidifying pan
  • INTERIOR SURFACES: Stainless steel containing copper
