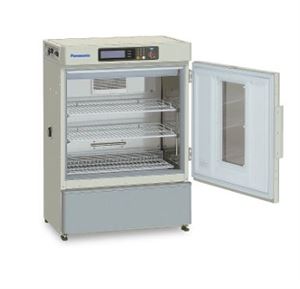

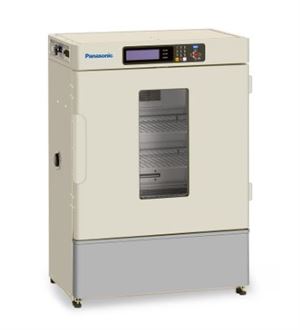

Cooled Incubator 4.34 cu

These incubators are recognized as exceptional units suitable for a wide range of applications that require a temperature range of -10C to +60C.



SKU: MIR-154PAN Categories: ,

Features:

  • Versatile Applications
  • Wide Temperature Range
  • Precise Temperature Control
  • Energy Saving Operation
  • Ergonomic Cabinet Design
  • Secure, Comprehensive Alarm System

Specifications:

  • EFFECTIVE CAPACITY: 123 L (4.34 cu.ft.)
  • EXTERIOR DIMENSIONS: 27.6in x 22.8in x 40.1in
  • INTERIOR DIMENSIONS: 24.4in x 14.5in x 21.9in
  • DOORS: Painted Steel
  • INSULATION: Rigid polyurethane foamed-in place
  • SHELVES: Polyethylene coated steel wire, 3 pcs, adjustable
  • SHELF DIMENSIONS: Upper (2) 22.4in x 11.8in; Bottom (1) 21.7in x 9.25in; Max load: 20 kg
  • AIR CIRCULATION: Forced air circulation
  • ACCESS PORT: Inner diameter 40 mm (1.57 mm), left side
  • COMPRESSOR: Reciprocated compressor. Output: 150 W
  • TEMPERATURE CONTROL RANGE: -10C to 60C
  • TEMPERATURE DISPLAY: Microprocessor, PID Control (compressor; ON-OFF)
  • TEMPERATURE UNIFORMITY: ±0.5C (SV:37%, ambient temperature: 20C, no load)
  • ALARMS: High/Low temp alarm, independent over-heat/over-cool limiter
  • NET WEIGHT: 78 kg (172 lbs)
  • ELECTRICAL REQUIREMENTS: 160 W, AC 115 V, 60 Hz
  • ENERGY CONSUMPTION: 200 W

Product also available in:
