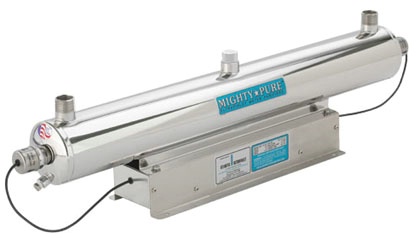

Medium Capacity Ultraviolet Water Purifier (3 gall/min)

This ultraviolet  water unit can purify 3 gallons per min and 180 gallons per hour. It utilizes germicidal ultraviolet lamps that produce short wave radiation lethal to bacteria, viruses and other microorganisms present in water.

Features:

  • Potable and high purity water applications
  • 316 Stainless Steel, electro polished and passivated inside and out
  • Dual heads may be removed and rotated for versatility during installation
  • Easy Off™ Retainer Cap for effortless lamp change
  • Fused quartz sleeve insure optimum lamp output at normal potable water temperature
  • Economical – hundreds of gallons are purified for each penny of operating cost
  • Safe – no danger of overdosing, no addition of chemicals
  • Chemical free – no chlorine taste or corrosion problems
  • Water is ready for use as soon as it leaves the purifier – no further contact time required
  • Simple installation and maintenance
  • Compact units require minimum space
  • Provides continuous disinfection without special attention or measurement
  • Water is passed through a sediment filter and a carbon filter before the ultraviolet disinfection process
  • All lamps used in this units are low pressure type which afford the maximum efficiency in producing the required germicidal rays
  • Obvious advantages of high efficiency and low power requirements, there is no possibility of the unit overheating (as is the case with some other lamp types)
  • The need for additional equipment to combat overheating is eliminated
  • Visible glow provides positive indication of germicidal lamp operation

If you wish to see additional information, please click here to see the PDF for this product.

Principle of Operation:

  • The water enters the purifier and flows into the annular space between the quartz sleeve and the chamber wall
  • Translucent sight port provides positive indication of germicidal lamp operation
  • Water leaving the purifier is instantly ready for use

Please see Accessories Tab for additional options

Specifications:

  • Flow rate: 3 gpm (gallons per min)
  • Voltage: 120v- 60Hz, 220v- 50/60Hz ,12v DC
  • Current (Amps): .24,.125, 1.27
  • Inlet/Outlet:  3/4in NPT
  • Rated water pressure: maximum PSI 125
  • Shipping weight: 30 lbs.

Unit Dimensions

  • Length: 19-1/2
  • Width: 4-5/16in
  • Height: 8-3/16in

Lamp Specification:

  • Lamp No: 05-1098-R
  • Nominal lamp length: 11-7/8in (302mm)
  • Power consumption: 14 watts
  • UV output: 3.7 watts
  • Effective Life: 10,000 hours

This product is also available in:

Manufacturer warranty: 1 year
